CVD Diamond and Hard Milling Tools

Diamond-Banner

Ultra-Precision

State-of-the-Art Technology

The technology for the Chemical Vapor Deposition (CVD) of pure diamond coatings on rotating cutting tools has developed rapidly during the past several years. Tungsten Carbide round tools are regularly being coated with continuous, well-adherent, diamond films that improve machining performance and increase tool lifetimes in composite materials by 15 to 30 times over uncoated tools. This paper reveals the process methods involved in CVD diamond film growth on tungsten carbide tool surfaces and the unique properties of diamond thin films. The surface of the diamond films can be controlled to create a faceted cutting edge that is ideally suited to machining abrasive composite materials and produces superior surface finishes. Application materials for diamond-coated tools include carbon fiber reinforced composites, fiber-reinforced plastics, green ceramics, advanced fiberglass structures, and aluminum metal matrix composites.

CVD diamond has all the extreme chemical and physical properties of natural diamond and high-pressure, high-temperature (HPHT) synthetic diamond. CVD diamond is essentially pure diamond formed as interconnected diamond microcrystallites with no binder – grown directly on the tool substrate.

With the intense interest of product designers, the diamond may become as common as aluminum is today. Its popularity has grown because diamond properties are found at the extreme poles on material scales and therefore offer many benefits.

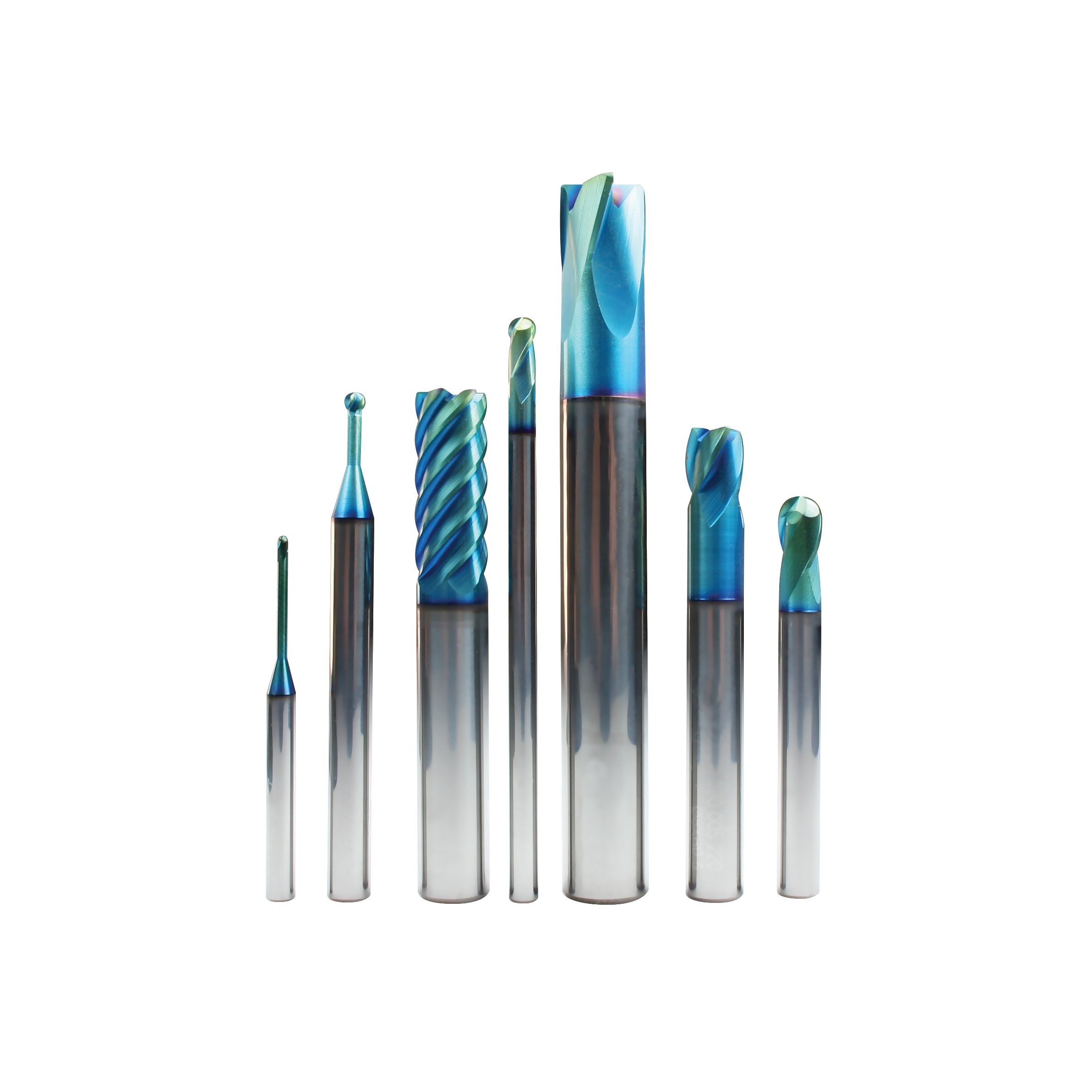

01_Best_Value_Mills

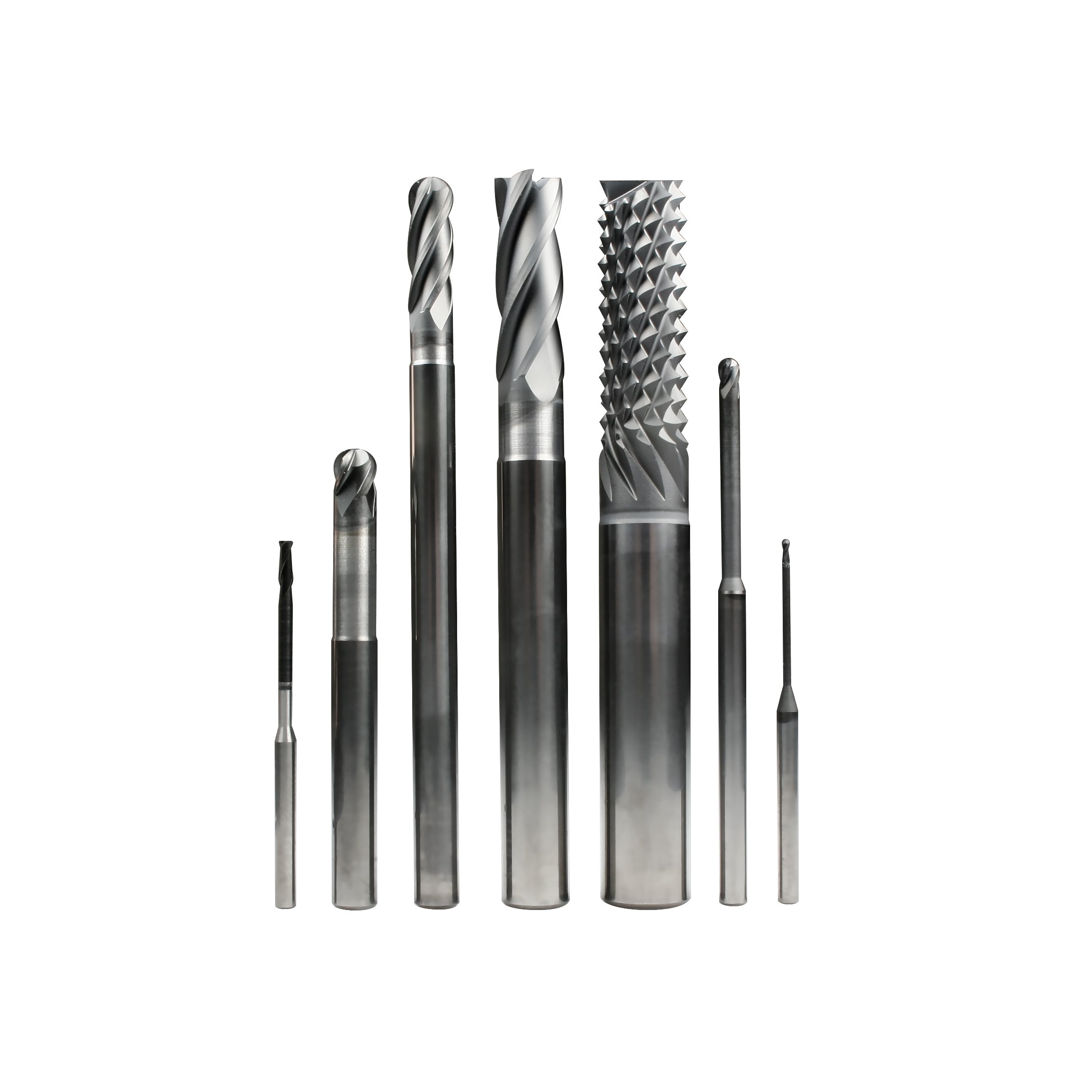

02_CVD_Diamond_Mills

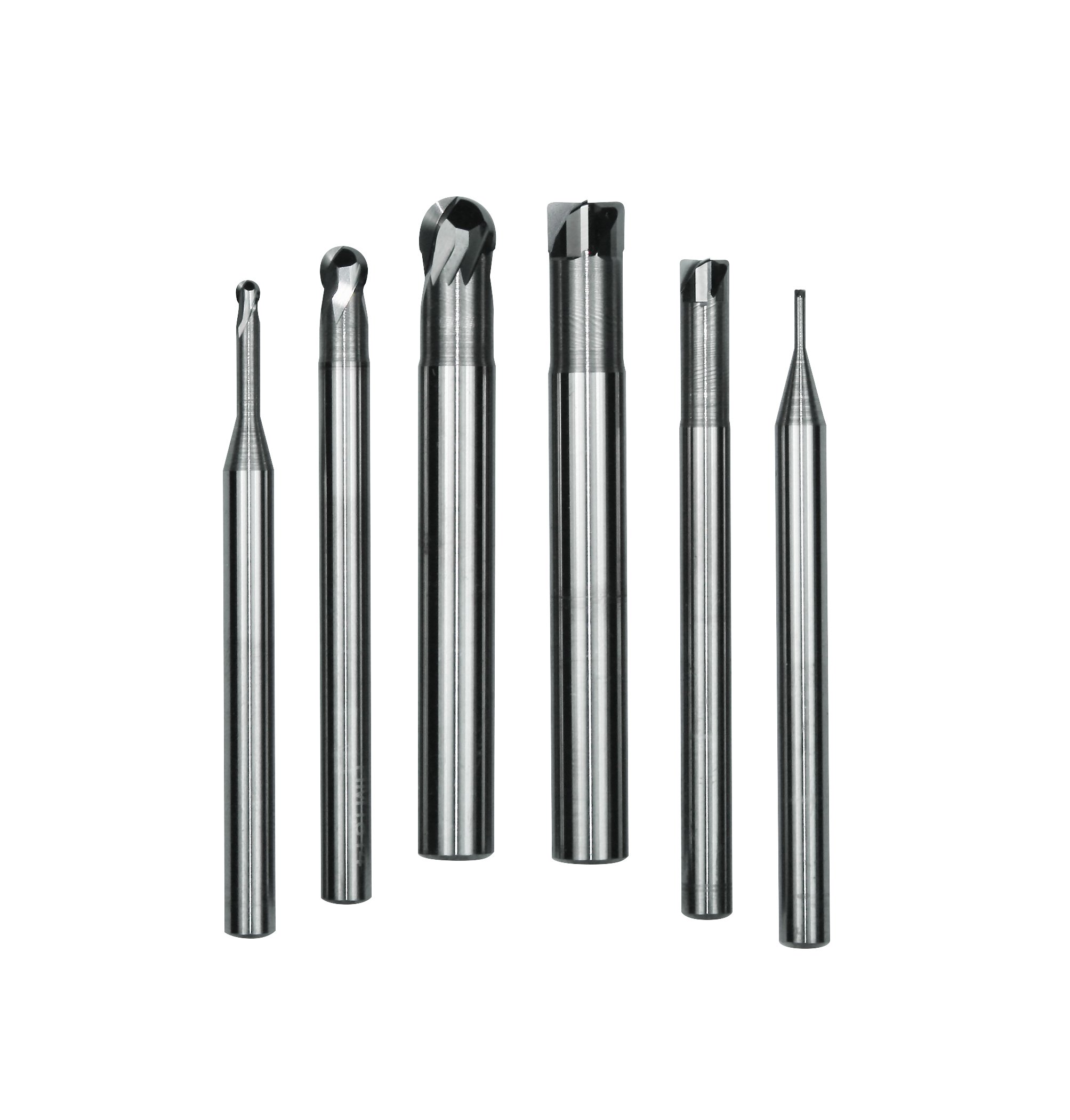

03_Finishing_End_Mills
04_Micro-Decimal_Mills

Benefits of Diamond

As a manufacturer, you place high demands on the performance of materials. Diamond is the perfect solution and 3D’s specialty. Contact one of our engineers – We’ll suggest how to implement diamond into your manufacturing process and improve your product performance today!

View the IDI Catalog View the JJ Catalog

Learn More About the Endmilling Process
